St Aldates, Oxford

Transforming 61 St Aldates with Valcan’s VitraDual A1-rated Panels

Project Details:

Location:

Oxford

Fixing Type:

Rivet Fix

Total:

650M2

Products:

Sector:

Education

Colours:

Silver Metallic

61 St Aldates, a fully occupied student accommodation in the heart of Oxford, recently underwent a significant façade upgrade, completed in July 2024. This project followed a 2022 investigation that identified issues with the cladded North elevation, prompting a full-scale remediation to ensure compliance and safety.

The building’s location presented unique logistical hurdles. With the Oxford Combined County Court (OCCC) immediately adjacent, the project required careful coordination and legal agreements to set up scaffolding and allow safe access without disrupting court operations. Once access was secured, the existing façade was stripped back to the internal plasterboard, revealing the need for a robust and fire-safe solution.

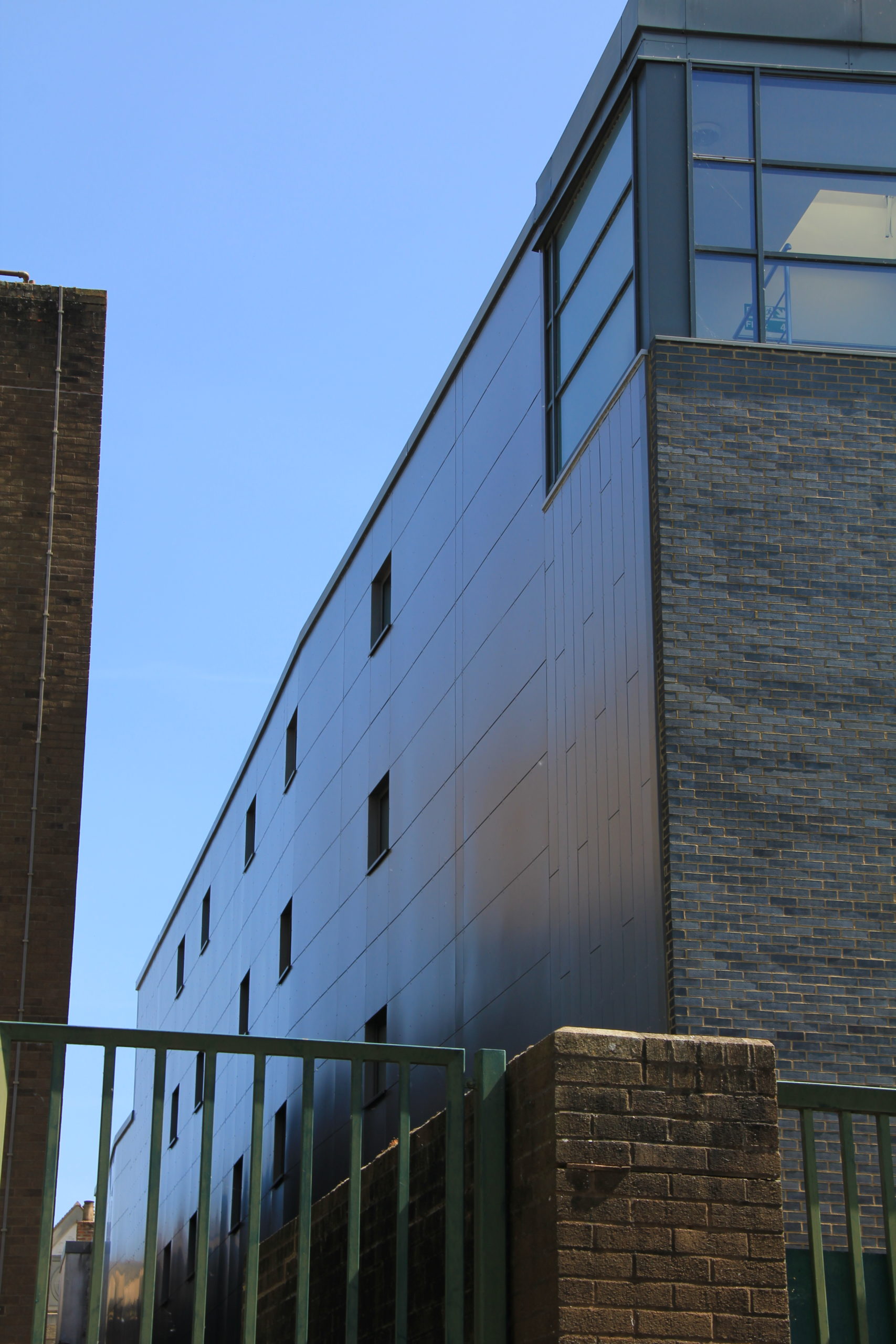

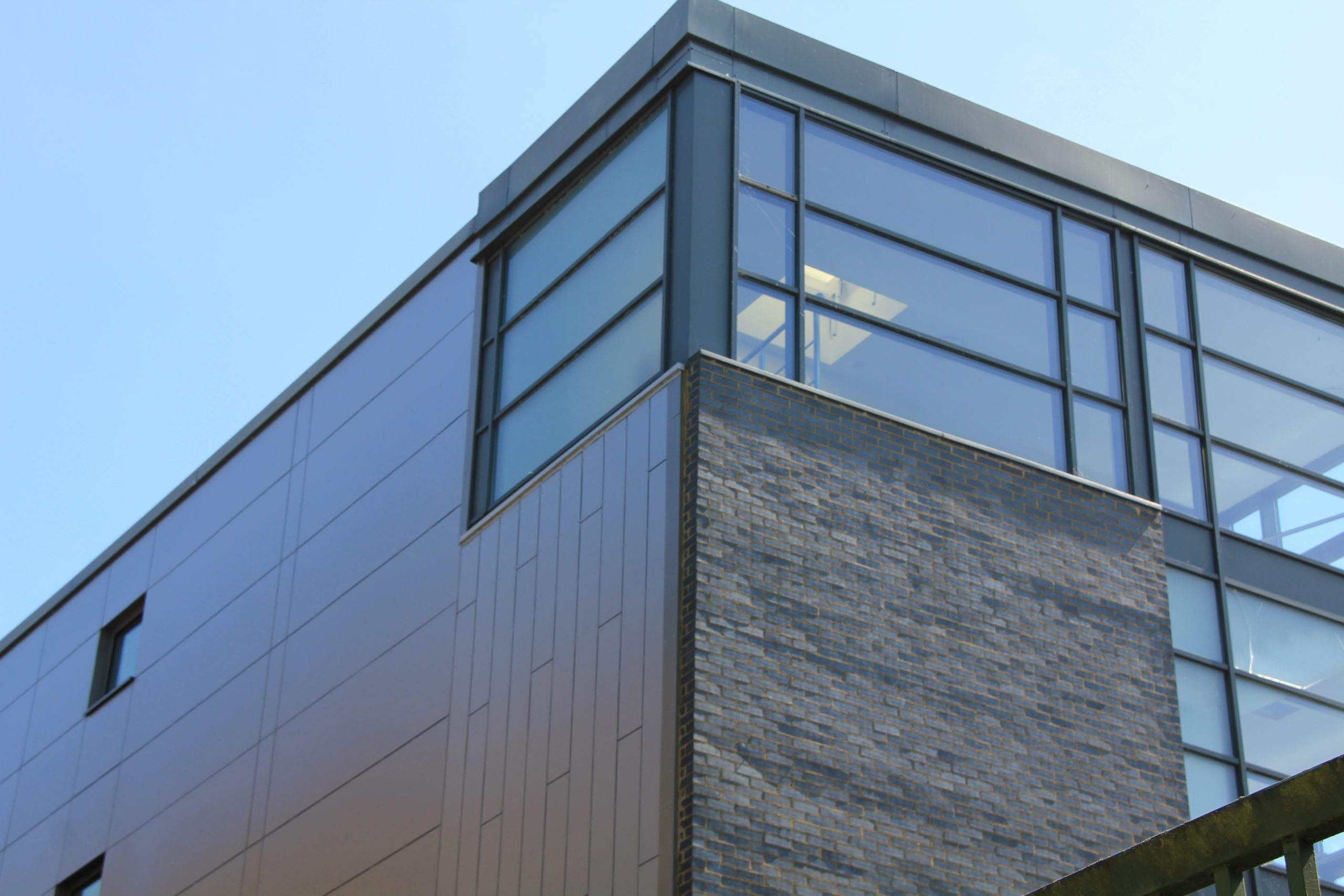

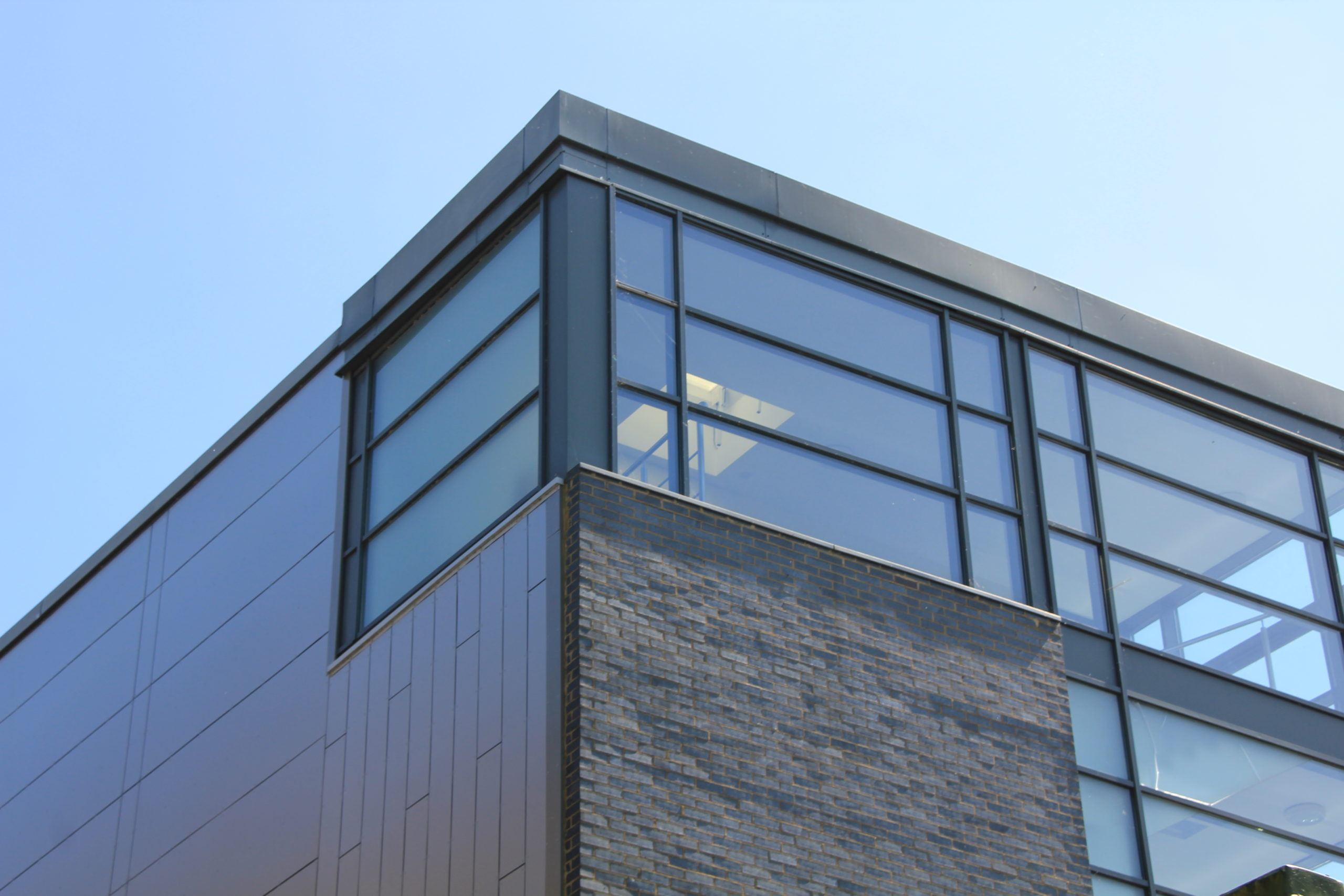

Valcan’s VitraDual A1 Aluminium Cladding Panels in Silver Metallic were specified and installed by Unite Facades Ltd for the replacement façade. These panels are A1-rated under EN 13501-1, meaning they are non-combustible, meeting the highest fire safety standards - a critical requirement for high-occupancy student accommodation.

Key benefits

  • Fire Performance: A1 non-combustible rating ensures compliance with UK building regulations for residential and educational buildings.
  • Durability: Resistant to corrosion and weathering, ideal for Oxford’s variable climate.
  • Design Flexibility: Available in a wide range of finishes and colours, enabling aesthetic harmony with historic surroundings.
  • Ease of Installation: The rivet-fix method used on this project provides secure, efficient installation while maintaining clean visual lines.

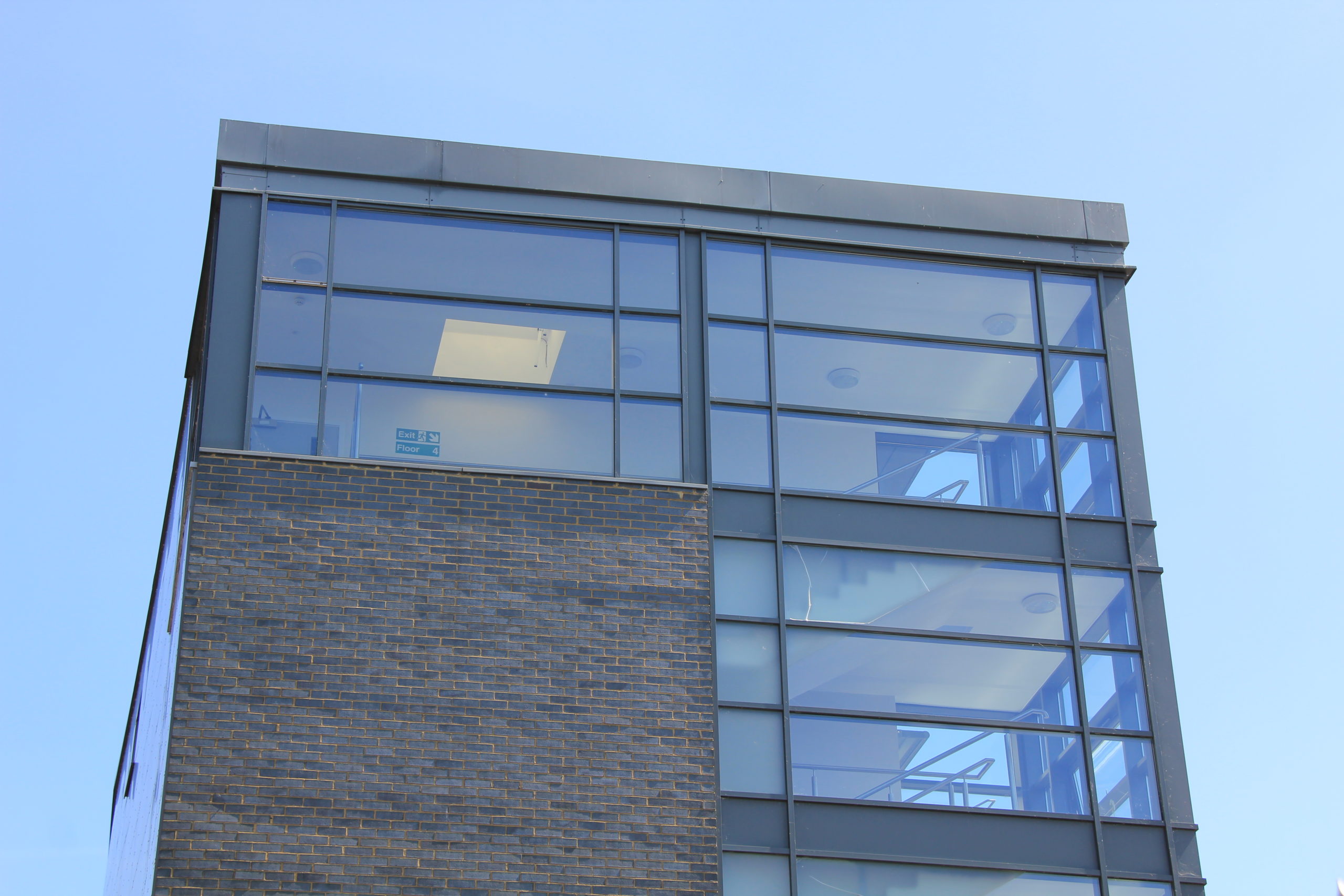

To complement the new rainscreen system, fire-rated windows were installed along the North elevation. Internal works were carried out under strict safeguarding procedures, ensuring student safety throughout the project.

The result is a fully compliant, visually appealing, and future-proof façade that enhances both safety and aesthetics. This project demonstrates how VitraDual is the ideal choice for high-occupancy buildings where performance and compliance are non-negotiable.

ABOUT VITRADUAL

Valcan VitraDual can be custom-designed into a wide range of shapes and dimensions as well as able to be perforated or curved in some applications making it a versatile design choice.

VitraDual is one of the few large format cladding panels that are truly 100% non-combustible achieving A1* to BS EN 13501-1.  Also tested to BS8414-2 for fire performance of external cladding systems and compliant to BR135 requirements - certificates are available which include VitraDual in specific configurations.

VitraDual has also been successfully tested to CWCT standards at a safety loading of 3600pa in both cassette fix and rivet fix using VitraFix as the subframe system.

VitraDual (3mm) comes with a BBA (certificate number 20/5824) giving an external cladding service life of at least 30 years - see section 10 of the BBA.

Please download the test reports here for full specifications, limitations and criteria.

VitraDual gives the insurers, architects, contractors and building owners peace of mind on product specification.
