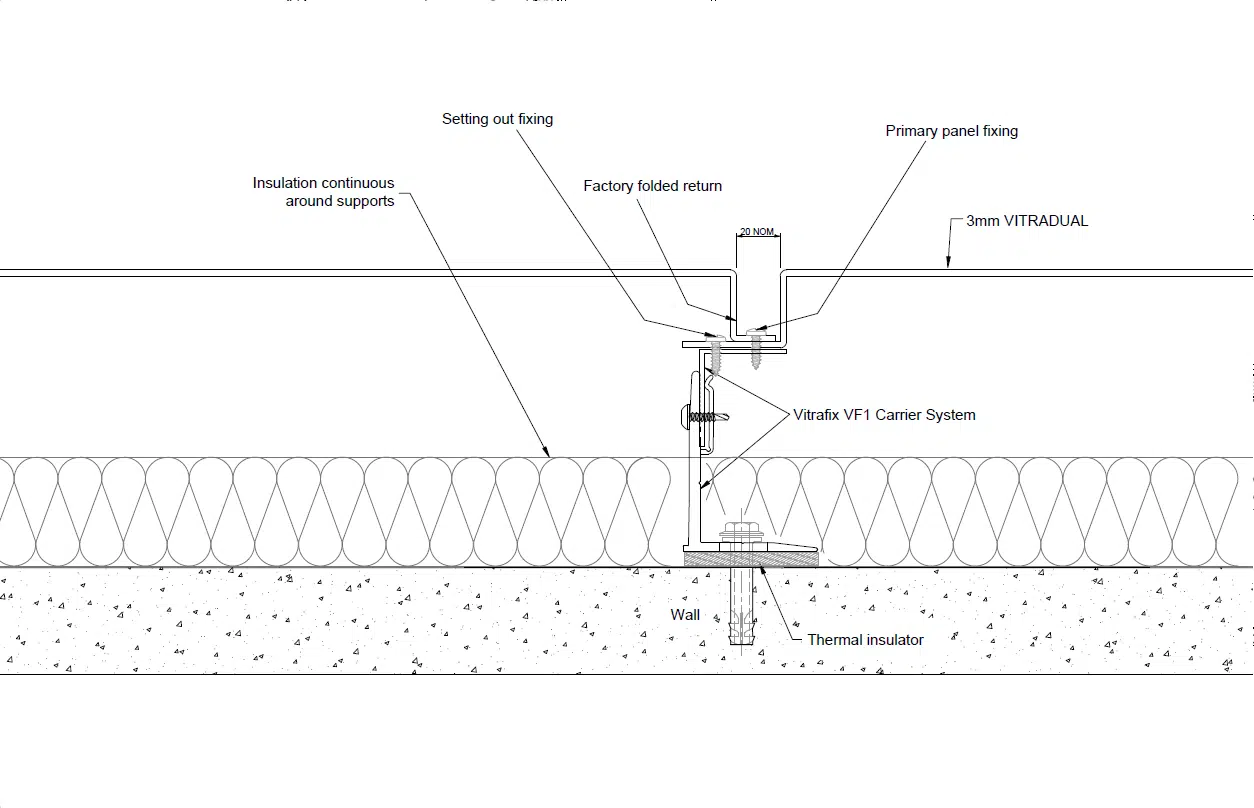

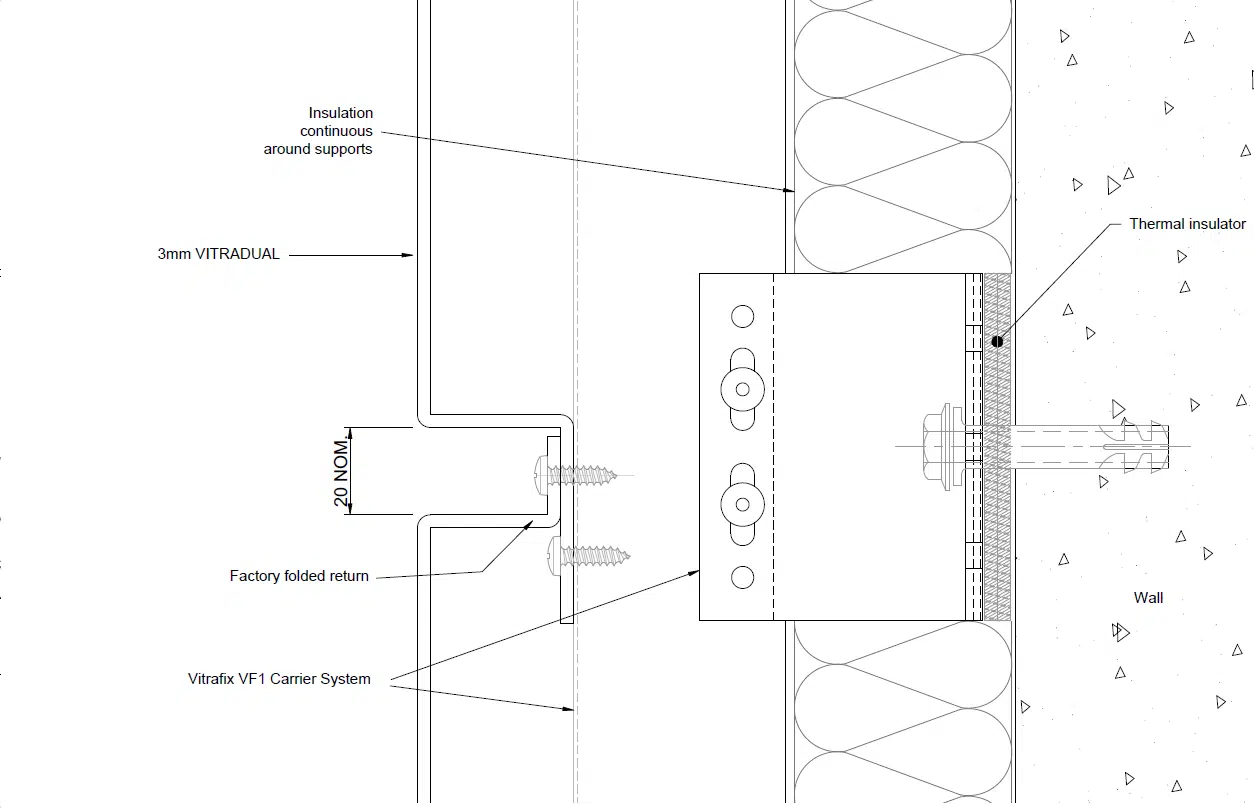

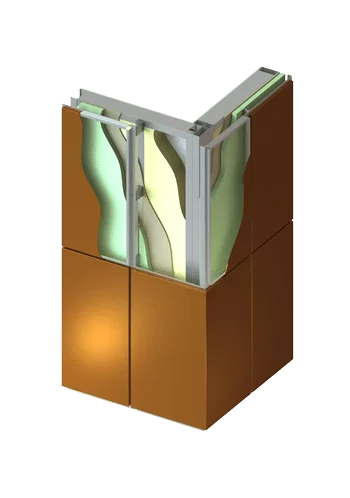

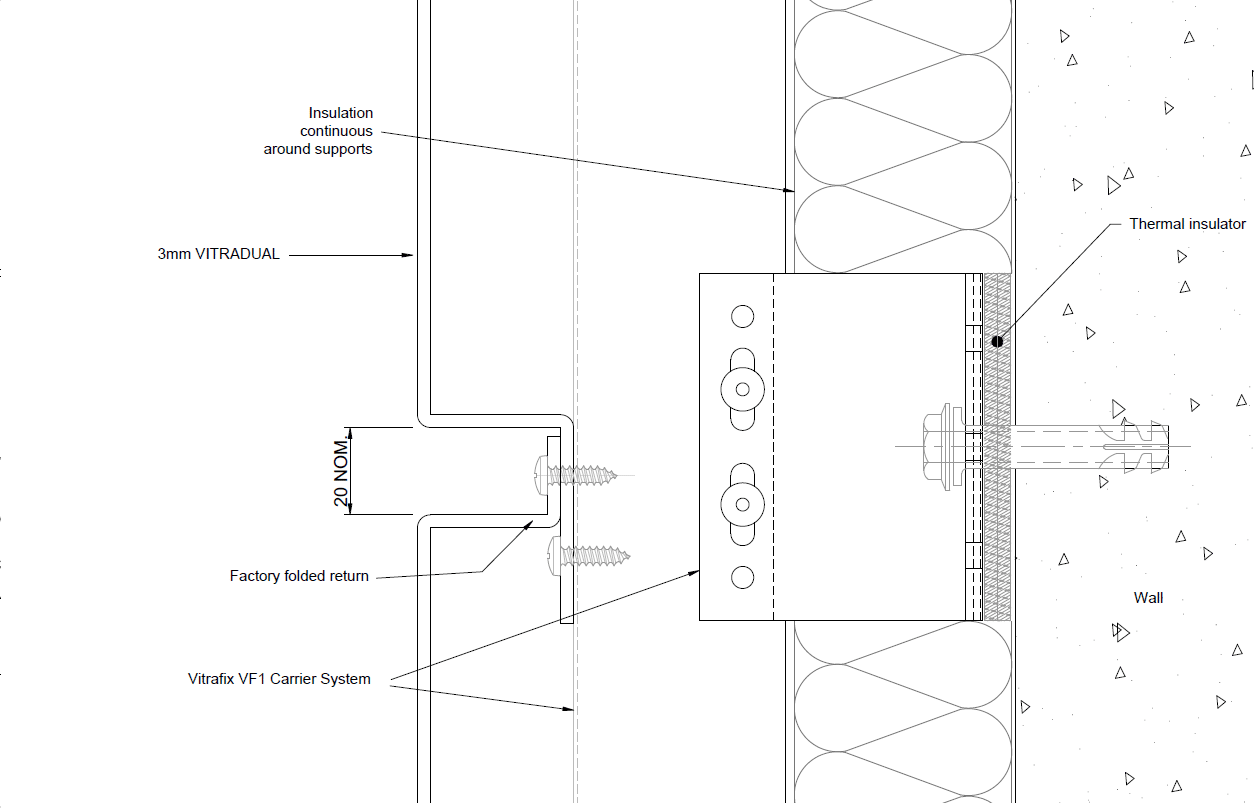

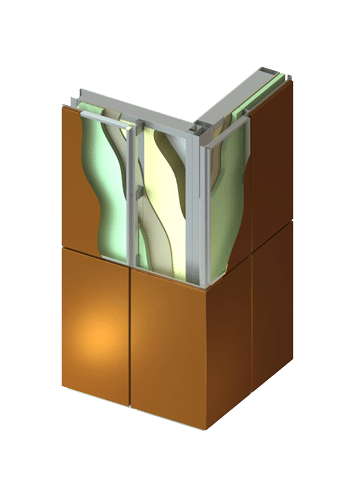

Our VitraDual Cassette Fix System is a versatile, open-jointed external aluminium cladding system that's perfect for both new construction and renovation projects. Using the well-proven rain-screen method, this system is suitable for soffit, parapet, vertical cladding application in landscape or portrait layout on low to high-rise buildings.

The cassette panels are formed and discreetly fixed to an aluminium/steel framework that is secured to the load-bearing structure. This innovative façade solution provides a modern and appearance, making it an excellent choice for architects and clients who want a sleek, contemporary look.

Whether you're designing a new building or renovating an existing one, our cassette fix system offers a range of benefits. From its durable and long-lasting construction to its modern and stylish appearance, this aluminium cladding system is designed to exceed your expectations.

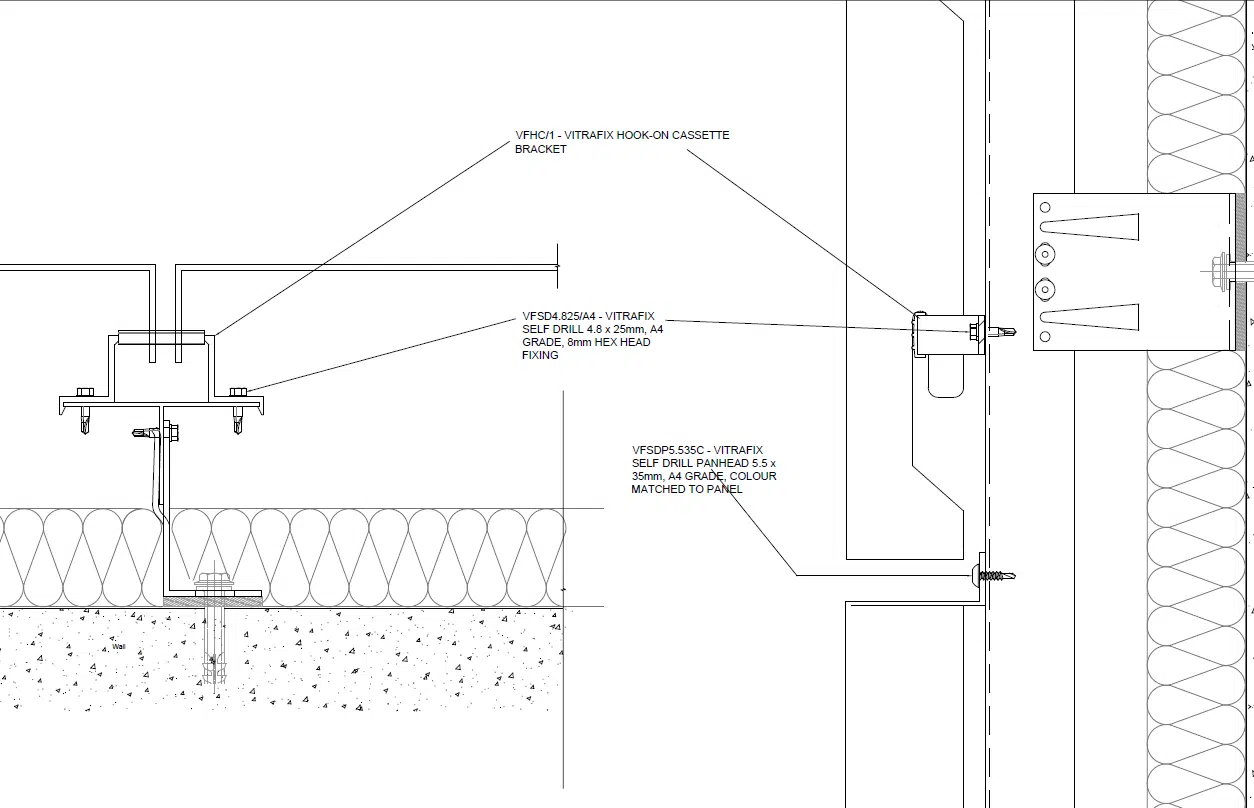

In this system, Vitradual panels are fabricated into "tray" panels with returns on all 4 sides, similar to the Cassette Fix system.

 However, instead of fixings being installed in the joints/reveals, the panels are hung onto a vertical profile that is fixed to the building, and fixed through the top ‘flange’ of the tray. This fixing is then covered by the next panel fixed above – thus ensuring the fixings are always hidden.

Fast to install with no visible fixings – this is the premium fixing method for VitraDual A1, and can be used for a variety of panel sizes and surface shapes, from small panels right up to large format panels such as 4000 x 1400mm for example. The carrier system to use to support this panel is VitraFix.

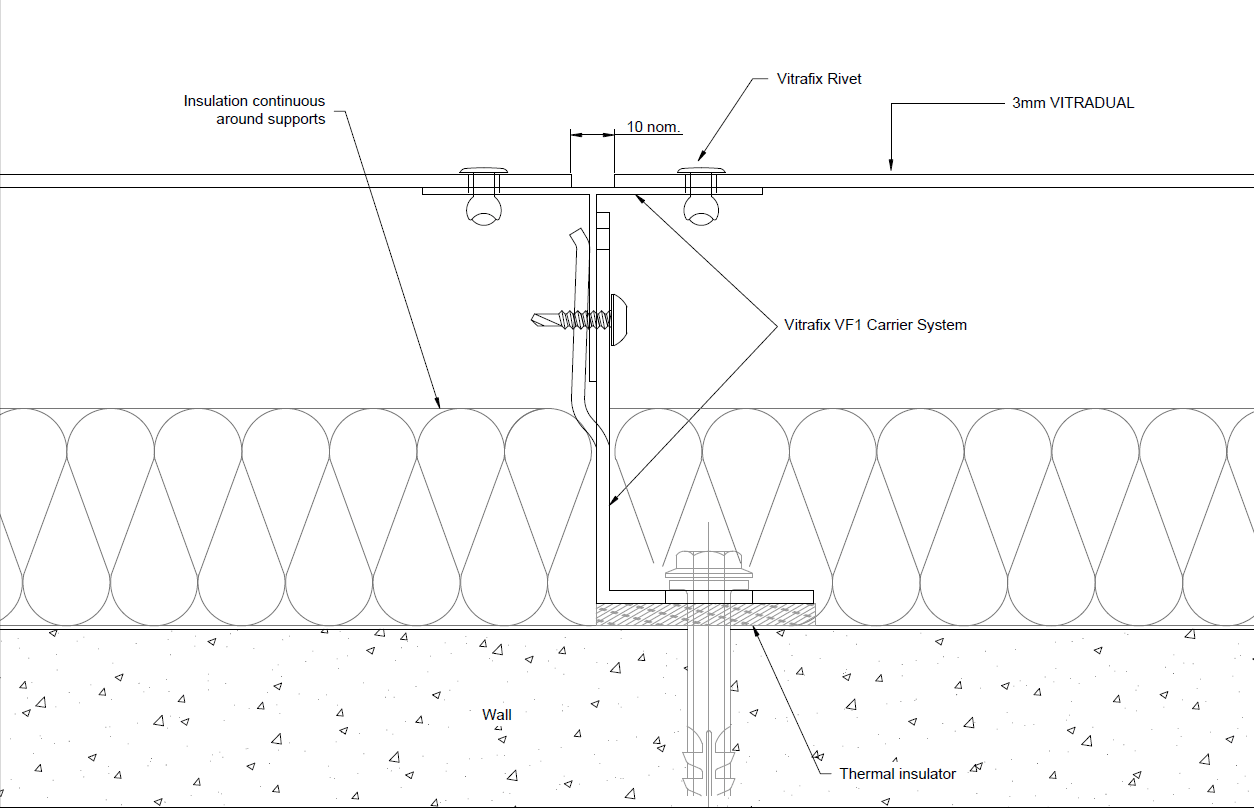

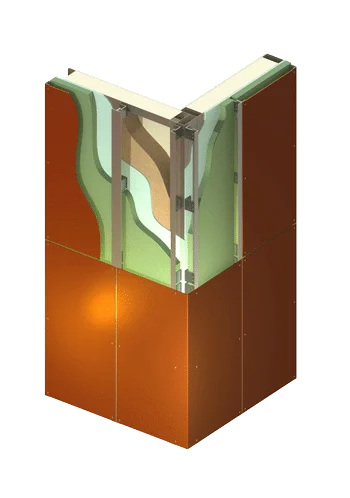

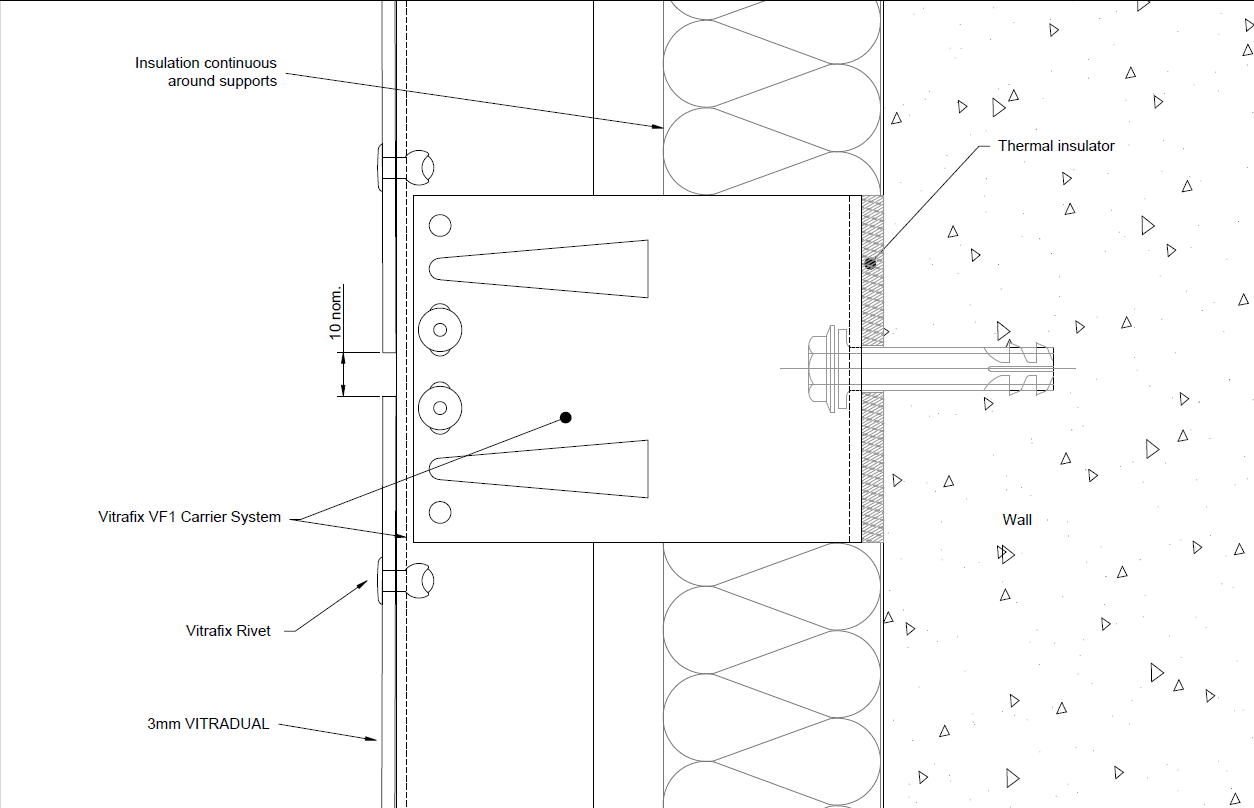

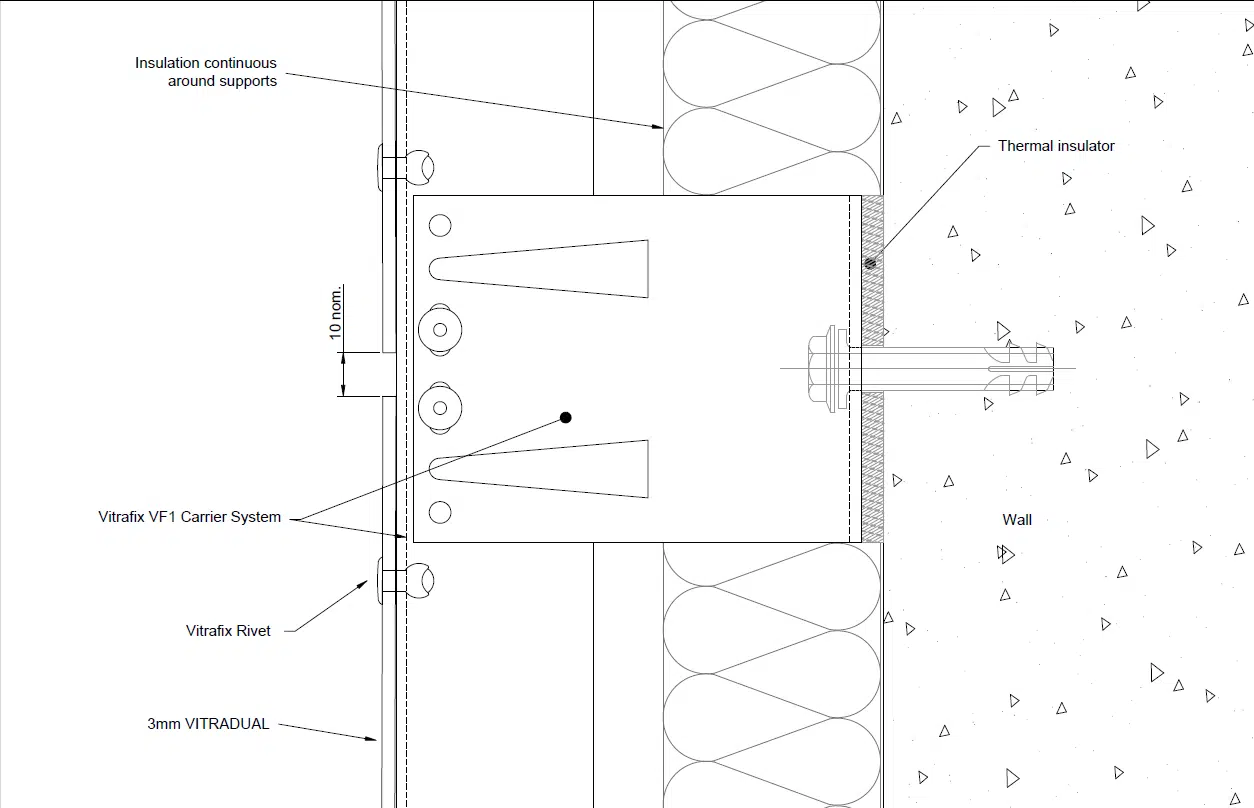

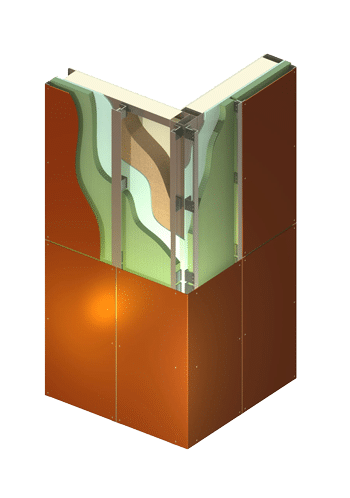

Our VitraDual Rivet Fix System is perfect for architects and clients who want the quality, certification and overall appearance that the cassette system offers, whilst offering a cost saving. This saving is achieved by removing a lot of the fabrication process of the cassette system with the panels simply being cut and drilled and installed using a face fit rivet. Corner panels are very simply formed by grooving the back of the panel and folding on-site.

The cladding panels are attached to a subframe system that is fixed with brackets to an aluminium or steel framework. This framework is then secured to the load-bearing structure of the building.

This aluminium cladding system type is perfect for buildings that require a fully tested and certified A1 system, but where budgets dictate the most cost effective solution.

In the Planking system, Vitradual panels are fabricated into planks that are fixed to the building substrate using a secret fix mechanical fastening back to the VitraFix VF1 support framing system.

The planks are overlapped and fixed together using a clip and rivet system, which provides a continuous, smooth surface without visible fixings. This system is often used for projects where a timber plank alternative is required, or that type of look desired.

When the plank system is installed using VitraDual in a wood effect finish, the effect is really fantastic. The widths and lengths of the planks can be made to your requirements within the parameters of our standard raw sheet sizes.

For more specification information please call or send us a message

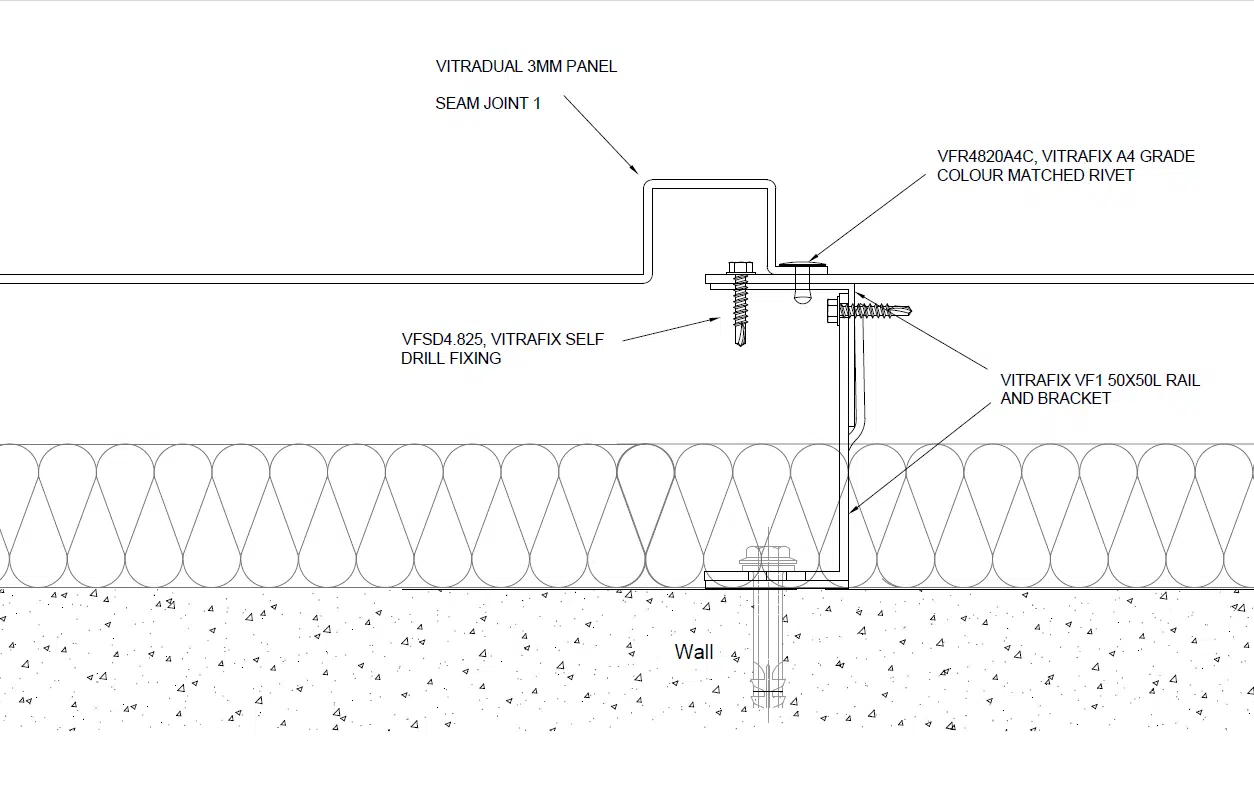

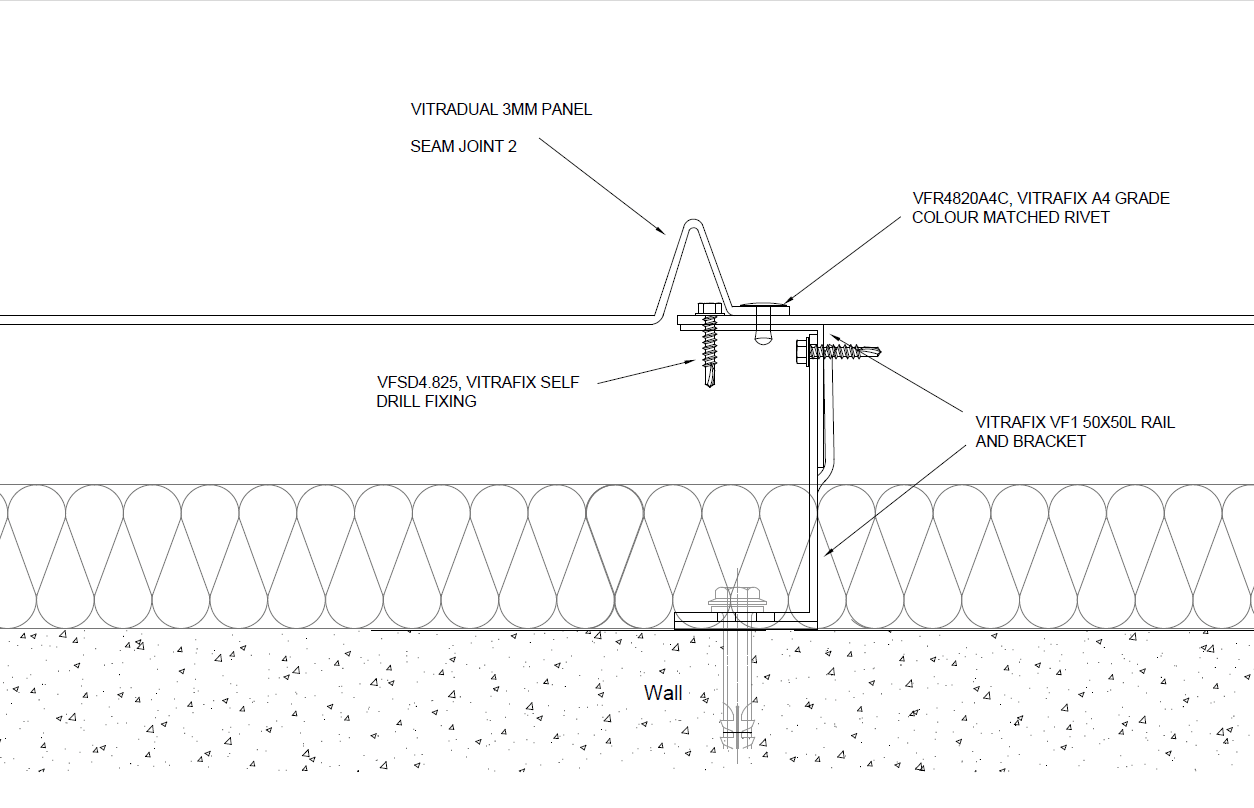

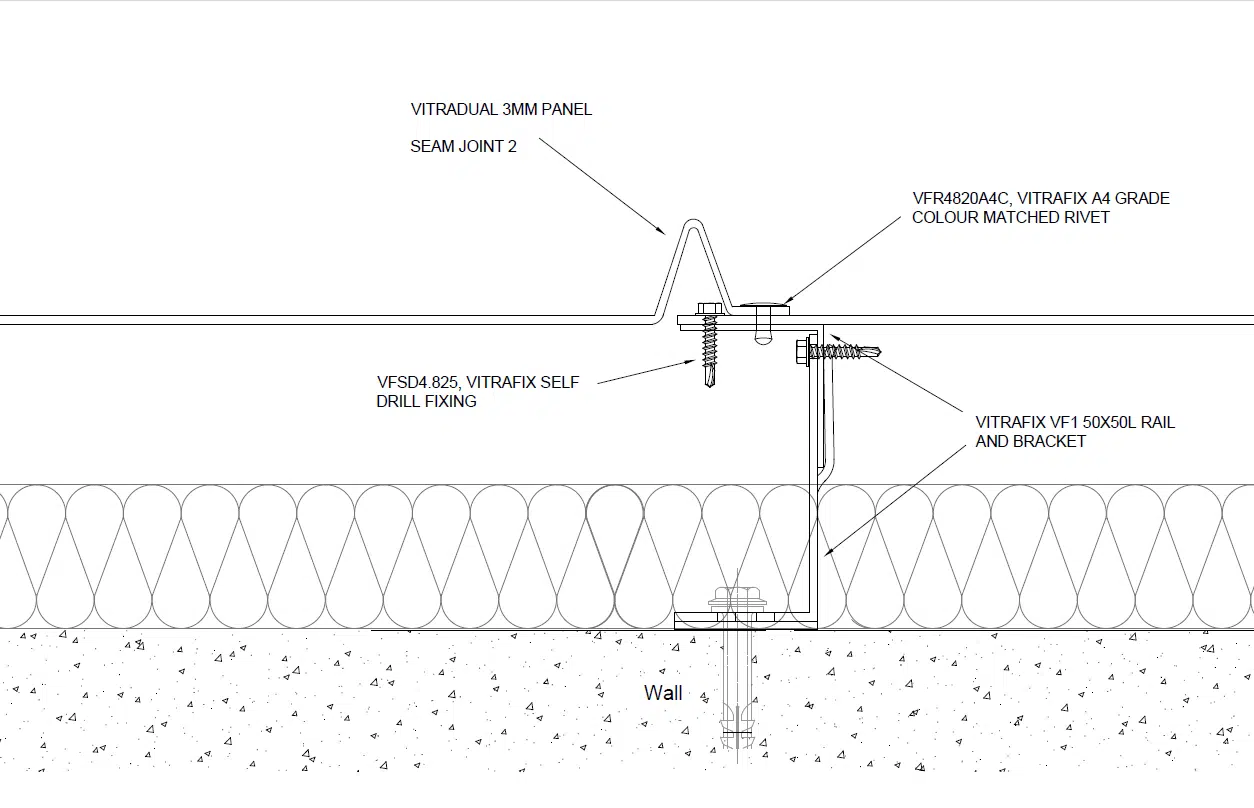

The Standing Seam Effect system is a popular choice for those cladding projects where the client requires the standing seam look, but would like to use VitraDual A1 rainscreen system with its superior panel flatness and speed of install.

In this system, the panels are fabricated into panels that are installed vertically or horizontally, with a raised seam running along the length of each strip, that overlaps the adjacent panel. The panels are fixed back to the building with a VitraFix VF1 system.

The widths and lengths of the panels can be made to your requirements within the parameters of our standard raw sheet sizes.

For more specification information please call or send us a message

The Stud Weld fixing system is an innovative method of installing VitraDual with no visible fixings.

The panels have brackets mechanically fixed to the back of a flat Vitradual panel, and then using the VitraFix VF3 System, these panels are installed to the building as a rainscreen cladding system.

This system provides a strong and secure attachment for the cladding panels, that can be installed quickly with very large panels available and a range of shapes and styles availble.
